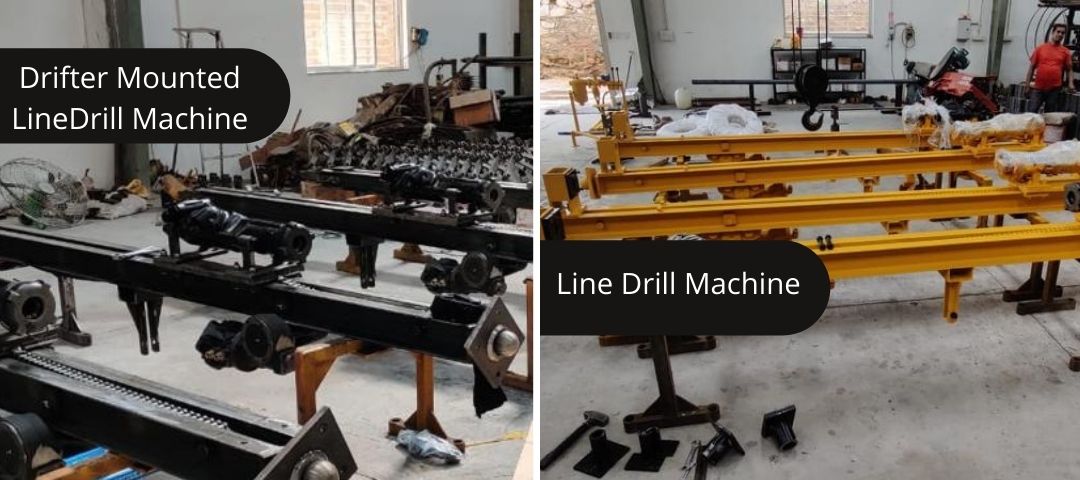

Ld-4 Drifter Mounted

drifter drilling machine manufacturers

drifter drilling machine manufacturers

drifter drilling machine manufacturers

drifter drilling machine manufacturers

Another kind of rock drill, called the drifter drill, is used for horizontal holes in mining operations and tunnel driving. It is mounted on some type of rig or frame and is mechanically fed into the work. Stoper drills are used primarily on up-hole or overhead drilling because of the automatic-feed characteristics. The usual stoper is a hammer drill with a self-rotating drill bit and an automatic feed by means of an air piston. Large air-operated earth drills, mounted on motor trucks on trailers, are utilized for digging water wells and blast holes for quarry operations.

We are a leading drifter drilling machine manufacturers in India which is also known as the line drill machine.

HOLE DIAMETER32MM - 64MM
VERTICAL DRILLING DEPTH20 METERS
HORIZONTAL DRILLING DEPTH20 METERS
DRILL PIPE DIAMETER32MM
DRILL PIPE LENGTHCUSTOM
PNEUMATIC MOTOR POWER4 HP(ONLY FEED MOTOR)
MINIMUM REQUIRED PRESSURE6 BAR(RECOMMENDED 8 BAR)
COMPRESSOR RECOMMENDED
FREE AIR DELIVERY(MIN-MAX)350-400 cfm
WORKING PRESSURE(MIN-MAX)8-10 bar
